The DeepSmartTool Flash Tool, developed by Flashcore and Jackson, is an enhanced version of the official Flash tool that incorporates many additional features. The tool is based on a Visual Studio interface and supports Windows 11 to Windows 10. With the DeepSmartTool Flasher Tool, you can flash firmware, images, erase partitions, backup partitions and much more. In this post, we will share the latest version of the DeepSmartTool Flasher, which supports most Qualcomm, MediaTek, OnePlus, Oppo, Vivo, Realme, Lenovo, and Xiaomi Phones.
The DeepSmartTool Flash Tool is useful for flashing firmware and switching between Chinese to Global firmware. The tool supports most Qualcomm, MediaTek devices, enabling the flashing of Qualcomm EDL firmware and MediaTek firmware and unbricking Qualcomm, MediaTek devices. The tool also supports partition backup features, allowing you to back up the modem, IMEI, and OFP/OPS file. The DeepSmartTool Flash tool is particularly useful if your Qualcomm or MediaTek device is bricked due to an update to the ROM or because of custom ROMs.
Key Points
- DeepSmartTool is an enhanced flashing tool for Qualcomm and MediaTek devices, supporting firmware installation and unbricking.
- The tool features a user-friendly interface, supports multiple languages, and works on Windows 10 to 11.
- It allows backup of important partitions like IMEI and modem data, and supports both Qualcomm EDL and MediaTek flashing.
- Users must install .NET Framework and Visual C++ Redistributable to run DeepSmartTool effectively.
- You can download the latest version, DeepSmartToolVer0.3.1, to access its full capabilities.
DeepSmartTool FlashTool Features
- ✅ Qualcomm EDL, MediaTek preloader Driver Installation
- ✅ Flashing Qualcomm EDL firmware and MediaTek firmware
- ✅ EDL Mode Detection and Connection
- ✅ MediaTek preloader Detection and Connection
- ✅ Firehose protocol supported
- ✅ Partition table read/write
- ✅ XML configuration file processing
- ✅ Partition cleanup function
- ✅ Multilingual support (Chinese and English)
- ✅ Graphical interface operation
- ✅ Run with administrator privileges
Supported Device
- ✅ Supports most Smartisan, Nut, Xiaomi, Redmi, OnePlus, realme, OPPO, VIVO, Black Shark, POCO, IQOO, Qitian, Lemeng, Savior, Xiaoxin, Lenovo Phones.
- ✅ Tested Model – OPPO Find X7 Ultra, OPPO Find X3 Pro, OPPO Find X5, Realme GT6, Realme GT, OnePlus 9, OnePlus 9 Pro, OnePlus 9 RT, OnePlus Ace 5, OnePlus Ace 3 Pro, OPPO Pad 4 Pro, Realme GT7 Pro Racing Edition, OnePlus Pad Pro, OnePlus Pad 2 Pro.
Requirements
- A Windos PC or Laptop
- Support Windows 10 to Windows 11
- Disable Anti-Virus or Windows Security
- Net Framework and VC Redist runtime are installed on your PC ➝ .NET 8.0 Runtime | Visual C++ Redistributable v14
- An Android device with an unlocked bootloader ➝ How To Unlock OnePlus Phone Bootloader
- Fastboot USB drivers must be installed on your PC ➝ Latest Google USB Drivers
- EDL Driver ➝ Qualcomm HS-USB QDLoader 9008 Drivers
Chnagelogs
v0.3.1
Completely free - reselling prohibited
[Fixed] Resolved some known issues.
[Enhance] Optimize overseas experience
v0.3.0
This v0.3.0 version has undergone a comprehensive upgrade focusing on function improvement, experience optimization, and performance compression, covering fixes, new features, and adjustments. Details are as follows:
I. Fixed Issues
Resolved the Qualcomm port occupation issue to prevent functional abnormalities caused by port conflicts.
Fixed the font library configuration failure problem on some Qualcomm devices due to incorrect configurations.
Fixed the post-flashing boot failure issue on Oppo 8Gen2 models.
Fixed the stalling problem during the PreloaderBackup process when writing partitions on MediaTek devices.
II. Feature Enhancements and Experience Optimizations
1. Interface and Interaction Upgrades
Removed the watermark within the program to improve interface simplicity.
Adjusted the layout of the homepage and settings interface, and optimized the user interface design and text display content.
Added a disclaimer when opening the software for the first time to clarify usage specifications.
Modifications to the settings interface take effect immediately without manual saving.
Optimized the loading interface and added a prompt for abnormal computer time.
Added right-click functions (copy, select all, save as file) to the log window for easier log management.
2. Function Migration and Aggregation
Migrated the "Install Qualcomm Driver/Android Driver" and "Open Device Manager" functions to the homepage for more convenient access to core tools.
Moved the CMD function to the newly added Android interface to achieve classified integration of functions.
Newly added Android interface: Integrates Fastboot partition table reading, partition erasing/writing, script flashing and other functions, supporting the flashing of Xiaomi Recovery packages of the same version.
3. Enhanced Functions of the Qualcomm Interface
New features: Obtain software information, set boot partition (supports Auto/0-5), repair GPT (all LUNs/0-5), erase GPT (all LUNs/0-5).
Experience optimization: Improved loading speed and added a cache mechanism; automatically includes Gpt_Main and Gpt_Backup partitions when reading GPT.
Detail upgrades: Renamed readback folders from timestamp to local time (for easier identification); optimized the Oppo protocol and added Oppo speed display.
Xiaomi device adaptation: For models supporting the xblgpt command, added the function of automatically applying xblgpt after writing partitions.
4. Performance and Size Optimization
Compressed the program size to 8MB, significantly reducing storage space occupation.
Optimized server protocol communication and the loading speed of the Qualcomm interface to improve operational smoothness.
5. Expansion of Firmware and Partition Tools
Newly added Unpacking Interface: Supports automatic identification and unpacking of multiple firmware formats (OfpMtk, OfpQc, Ops, Pac, UpdateApp, Kdz, Dz, Ozip, Payload (link/local), Zip (link/local)).
Backup function upgrade: Added the ability to generate rawprogram files for partitions backed up by the "Backup Security Partition" function.
6. Other Adjustments
Added the "Fix USB3.0 Connection Issues" function to the homepage.
Adjusted the Firmware Package interface (temporarily taken down and will be renamed Download Center after optimization).
This update covers multi-dimensional improvements. It is recommended to experience the optimized details of each function through actual operation.Screenshots
Download the Latest DeepSmartTool Flash Tool
Here you can get the latest DeepSmartTool Flash Tool version, DeepSmartToolVer0.3.1, in a zip file, so you can download even if the official links have stopped working.
How To Flash Firmware with DeepSmartTool
- 1. First, read the Requirements and install the .NET Framework and the Visual C++ Redistributable. Disable Anti-Virus or Windows Security.
- 2. Install Fastboot USB Drivers and EDL Driver on your PC.
- 3. Download the DeepSmartTool zip file and unzip the tool.
- 4. Download edl Firmware from this website ⇾ roms.danielspringer.at or From Our Firmware Category.
- 5. Unzip the EDL Firmware zip, then run the DeepSmartToolVer.exe file. Click More Info and then Run Anyway.

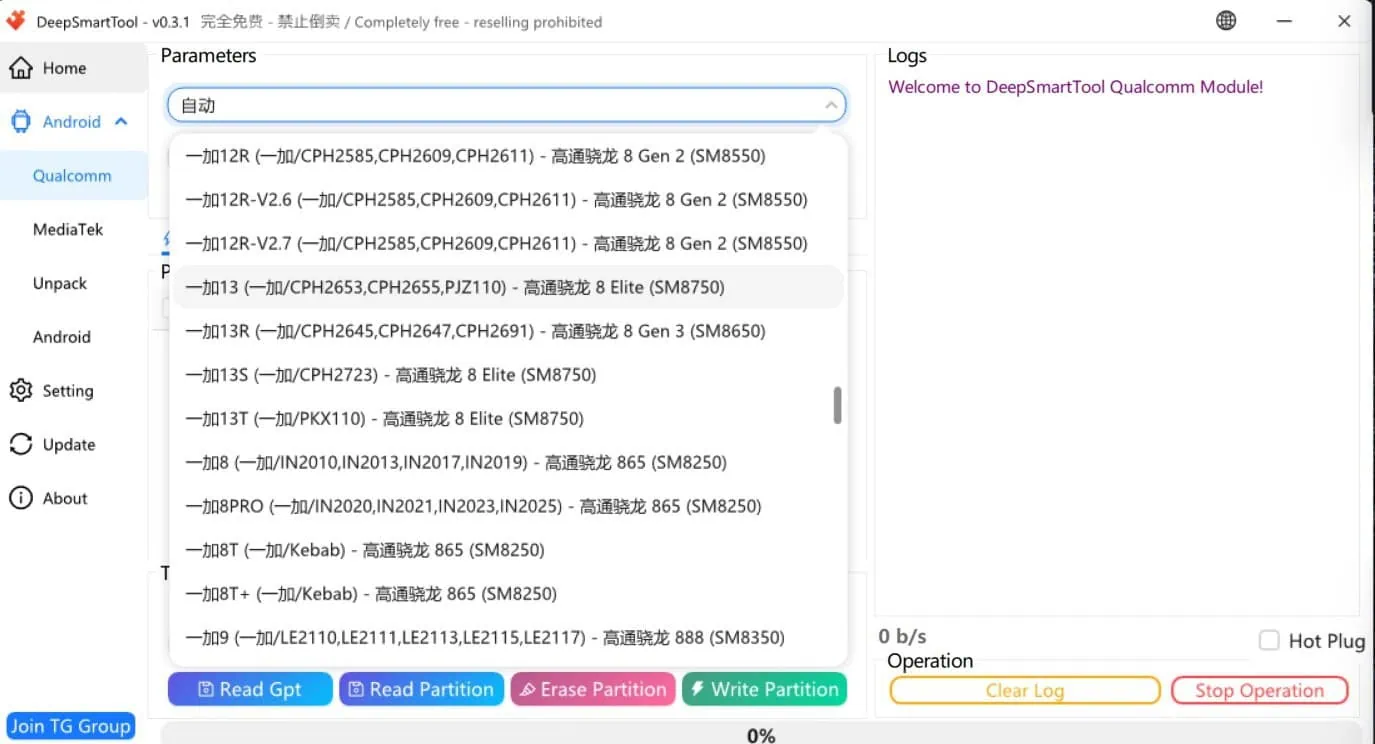

- 6. Find your device’s Snapdragon chipset model for your OnePlus Phone. eg – For OnePlus 13 (Snapdragon 8 Elite)
- 7. Now, click Android and Select Qualcomm or Mediatek for your device
- 8. The First Option is “自动” This will select the device automatically.
- 9. You can select your device manually from the list.
- 10. Now browse the raw file from your EDL firmware folder by double-click Select Rawprogram File. (For MediaTek Device Browse scatter file)
- 11. Click Load in the new prompt. It will load the [0 to 5] raw partitions from the XML files.
- 12. Now Switch Off your phone and turn on your device into EDL Mode by holding Volume Up & Down while inserting the USB cable, or use the fastboot command.
adb reboot edl
or
fastboot oem edl- 13. Once the device is connected to the tool, back up your IMEI data for safety.
- 14. Backup modem, IMEI data by clicking “Read Partitions“, Then Select Persist, OCDT, fsg, fsc, modemst1, and modemst2, EFS Partitions and then click Read Selected and save the files in a safe folder.
- 15. Once the backup is completed, Uncheck Persist, OCDT, fsg, fsc, modemst1, and modemst2, EFS Partitions for safety.
- 16. Now, Tick “Reboot after flash” and click “Write Partitions“
- 17. Wait for 10-15 Minutes to complete the flashing, and the device will auto-reboot after that.
FAQ
The DeepSmartTool (DST) is a Windows based software that performs flashing of firmware in EDL mode, repairs bricked Qualcomm based android smartphones such as Xiaomi, OnePlus, Oppo & Realme. In addition, it provides FRP removal and various service options for supported chipsets.
Automatically detects EDL mode, reads/writes and backs-up partitions, erases individual partitions, flashes Qualcomm firmware xml files (rawprogram,patch), and supports FRP removal and some general repair function on MTK/Qualcomm devices in newer builds.
It is compatible with most Windows PC’s using Windows 10 & Windows 11 in 64bit versions, however, users will need to install proper usb/qualcomm drivers on their system for reliable detection.
Generally the DST tool is distributed for free and does not require paid logins with credits for basic operations.
If the user uses the correct firmware and settings the tool is considered safe; however incorrect partition operations and/or flashing incompatible firmware may result in permanent bricking of a device. Please always backup important partitions (such as EFS/NV) and confirm your model and firmware before attempting any process.
