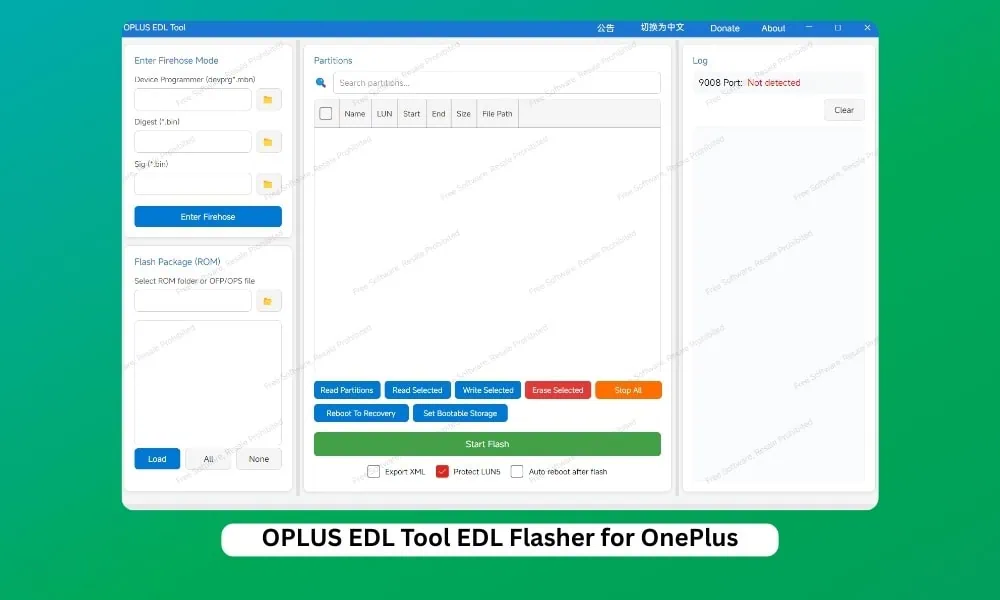

The OPLUS EDL Tool is developed by Salokrwhite, an enhanced version of the official Oppo flash tool that has been modified with many additional features. The tool is based on a Visual Studio interface and supports Windows 11 to Windows 10. With the OnePlus EDL Flasher Tool, you can flash EDL firmware, images, erase partitions, backup partitions and much more. In this post, we will share the latest version of the OPLUS EDL Tool EDL Flasher that supports most OnePlus, Oppo, and Realme Phones.
The OPLUS EDL Tool is helpful for flashing EDL firmware and switching between Global Oxygen OS and Chinese ColorOS firmware. The tool supports most OnePlus, OPPO, and Realme devices, enabling the flashing of EDL firmware and unbricking for OnePlus, OPPO, and Realme devices. The tool also supports partition backup features so you can back up modem, IMEI, OFP/OPS file. THE OPLUS EDL tool is particularly useful if your OnePlus device is bricked by updating the ROM or bricked because of custom ROMs.
OPLUS EDL Tool Features
- ✅ Flashing EDL firmware
- ✅ EDL Mode Detection and Connection
- ✅ Firehose protocol supported
- ✅ Partition table read/write
- ✅ XML configuration file processing
- ✅ Partition cleanup function
- ✅ Multilingual support (Chinese and English)
- ✅ Graphical interface operation
- ✅ Run with administrator privileges
Supported Device
- ✅ Supports most OnePlus, Oppo, and Realme mobile phones with EDL mode.
Requirements
- A Windos PC or Laptop
- Support Windows 10 to Windows 11
- Disable Anti-Virus or Windows Security
- Net Framework and VC Redist runtime are installed on your PC ➝ .NET 8.0 Runtime | Visual C++ Redistributable v14
- An Android device with an unlocked bootloader ➝ How To Unlock OnePlus Phone Bootloader
- Fastboot USB drivers must be installed on your PC ➝ Latest Google USB Drivers
- EDL Driver ➝ Qualcomm HS-USB QDLoader 9008 Drivers
Chnagelogs
OplusEDLTool_release_v2.0.4
New A donation page has been added. If this tool is helpful to you, you are welcome to donate to the developers. Your support is our motivation!
repair Fix some known issues
OplusEdlTool_v1_release_20251215
Optimize software performance
Add a secondary confirmation for flashing the persist partitionScreenshots
Download Latest OPLUS EDL Tool
Here you can get the latest OPLUS EDL Tool version OplusEDLTool_release_v2.0.5.2 to OplusEdlTool_v1 in a zip file, so you can download even if the official links have stopped working.
| OPLUS EDL v2 | OPLUS EDL v1 |
|---|---|
| OplusEDLTool_release_v2.0.5.2.zip | OplusEdlTool_v1.zip |
| OplusEDLTool_release_v2.0.4.zip |
How To Flash EDL Firmware with OPLUS EDL Tool
1. First, read the Requirements and install the .NET Framework and the Visual C++ Redistributable. Disable Anti-Virus or Windows Security.
2. Install Fastboot USB Drivers, and EDL Driver on your PC.
3. Download OPLUS EDL Tool v1 for old models and v2 for new models with advanced features.
4. Download edl Firmware from this website ⇾ roms.danielspringer.at

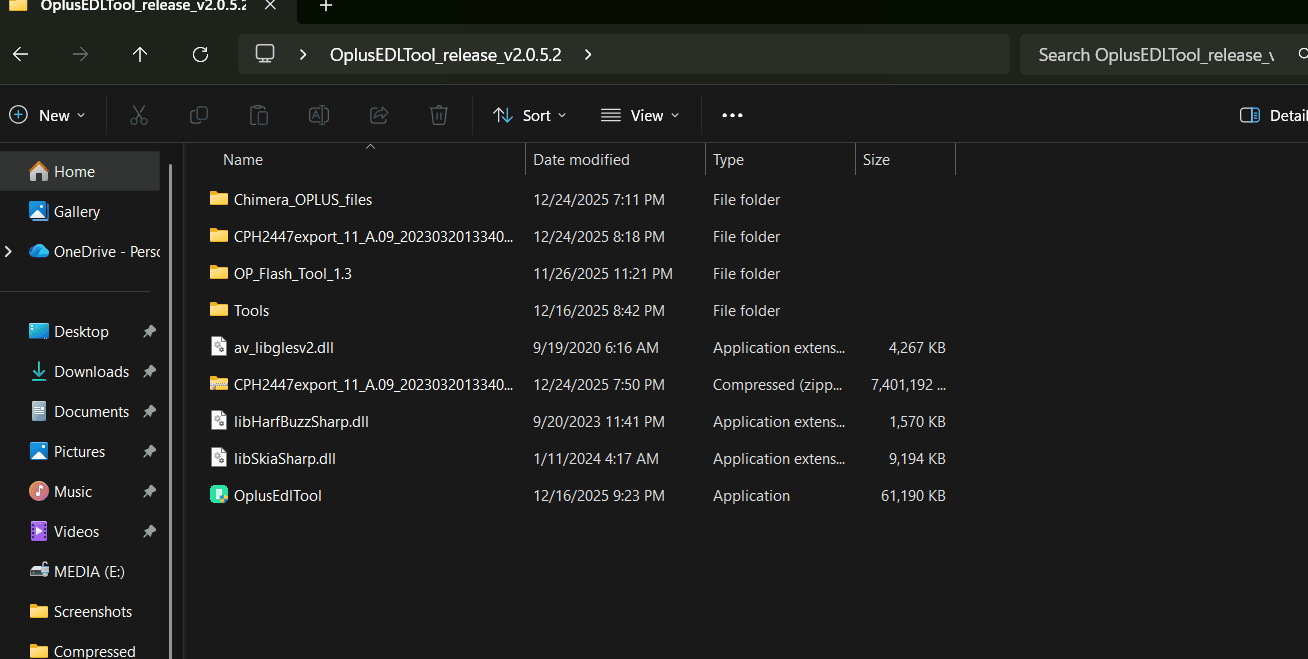

5. Unzip the OPLUS EDL tool zip file and the EDL Firmware zip file folder in the EDL Tool folder, then run the OplusEdlTool.exe file.
6. Find your device’s Snapdragon chipset model for your OnePlus Phone. eg – For OnePlus 13 (Snapdragon 8 Elite)
7. Now browse Firehose Files from “Chimera_OPLUS_files” to enter Firehose mode.
8. For the Snapdragon 8 Elite OnePlus 13 Phone, browse the Firehose files from the (SM8750_8E) Folder.
Device Programmer Select (OPPO_SM8750_New_Chimera_V1.0.05.melf), Digest Select (OPPO_SM8750_New_Chimera_Digest.elf), SIG Select OPPO_SM8750_New_Chimera_Sign.bin File9. Now Switch Off your phone and turn on your device into EDL Mode by holding Volume Up & Down while inserting the USB cable, or use the fastboot command.
adb reboot edl
or
fastboot oem edl10. Once the device is connected to the tool, click Enter Firehose.
11. Backup modem, IMEI data by Click “Read Partitions” Then Select Persist, OCDT, fsg, fsc, modemst1, and modemst2,EFS Partitions and then click Read Selected and save the files in a safe folder.

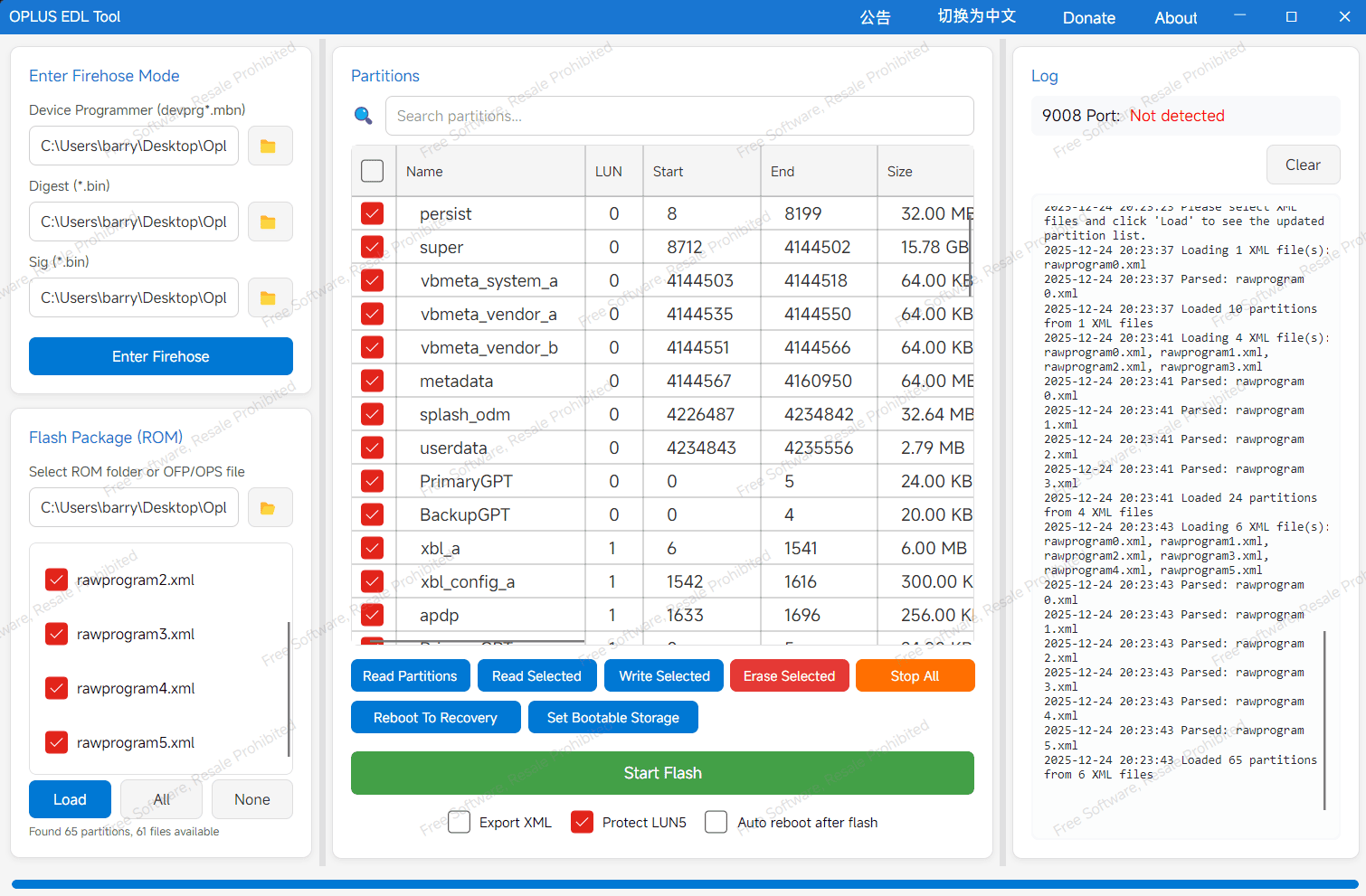

12. Now browse the EDL Firmware folder in the Flash Package (ROM) tab.
You’ll get a prompt Once the firmware is loaded: “Found super_def.json with 17 partitions, Do you want to merge them into super.img?” Click YES.13. Then select all the rawprogram.xml files from the bottom left side, and click on Load
14. Uncheck Persist, OCDT, fsg, fsc, modemst1, and modemst2, EFS Partitions for safety.
15. Now, click Write Selected and confirm the flashing by clicking “YES”
FAQ
The Flash Tool is used to flash EDL firmware, unbrick OnePlus/Oppo/Realme phones, and manage partitions like backup and erase in EDL mode.
The tool supports most OnePlus, Oppo, and Realme smartphones that can enter Qualcomm EDL 9008 mode.
You need a Windows 10 or Windows 11 PC, proper Qualcomm EDL and Fastboot USB drivers, and .NET 8.0 plus Visual C++ Redistributable installed.
Yes, it can read and backup partitions such as persist, modem, EFS, and other radio-related partitions before flashing.
For safety, sensitive partitions like persist, modem, and EFS should usually be unchecked while flashing firmware unless you know exactly what you are doing.
