How To Unlock Bootloader of Xiaomi Redmi Note 3

How To Unlock Bootloader of Xiaomi Redmi Note 3Unlock Bootloader of Xiaomi Redmi Note 3

This post about how to unlock Bootloader of Xiaomi Redmi Note 3 without unlock code You can use the official method from here http://en.miui.com/unlock/ .

Xiaomi Redmi Note 3 smartphone was Launched in November 2015. The phone comes with 5.5 touchscreen inches with a resolution of 1080 by 1920 pixels on a PPI of 403 pixels. The phone is powered by 1.8 GHz hex-core Qualcomm Snapdragon processor 650 and comes with 2 GB of ram. Redmi Note 3 packs 16gb of internal storage which can be expanded up to 32gb via a micro sd card. The xiaomi redmi note 3 comes with the main camera of 16 megapixels on the back and a front  5 megapixels for a selfie. The redmi Note 3 runs Android 5.1 and is powered by a non-removable battery 4050 mah. It measures 150.00 x 76.00 x 8.65 (height x width x thickness) and weighs 164.00 grams.
The redmi note 3 is a dual phone sim (CDMA and gsm, 4G) that accepts micro-sim options nano-sim connectivity and include wi-fi, GPS, Bluetooth, FM, 3g, 4g.Sensors in the phone include a proximity sensor, ambient light sensor, gyroscope.

This post about how to unlock Bootloader of Xiaomi Redmi Note 3 without unlock code You can use the official method from here http://en.miui.com/unlock/ .

Preparation:-

  • BACKUP PHONE DATA.
  • ENABLED USB DEBUGGING.

Go to settings on your phone. Then click on About Phone > Now Tap 7 Times on MIUI version.
This will Enable Developer Options On your Phone. Now Go back to Main settings Menu.
Click on Additional Settings > Developer Settings > Enable Usb Debugging.

  • ENABLE OEM UNLOCK

Go To Settings>Developer Options And Enable Oem Unlock

  • INSTALL ADB DRIVER.

Simply Install Mi Flash Tool It Will Be Install All Required Drivers

  • DRIVER SIGNATURE MUST BE DISABLED IN WINDOWS 8,10.
  • FASTBOOT ROM – GLOBAL STABLE V7.2.3.
  • DOWNLOAD REQUIRED TOOLS AND FILES.

⇓⇓Download Tool Drivers Files ⇓⇓

Redmi Note 3 Unlock Bootloader.zip

7.2.3_unlocked_emmc_appsboot.zip

GLOBAL STABLE V 7.2.3 Link -> Link

Unlock Bootloader of Xiaomi Redmi Note 3 Without Unlock Code:-

Step 1:-

  • Download and unzip “Redmi Note 3 Unlock Bootloader.zip”.
  • Rom Download  “Global Stable V 7.2.3” And Unzip It.
  • Download and unzip7.2.3_unlocked_emmc_appsboot.zip” .

Step 2 :-

  • Unzip “AnF.zip”  and “Unlocked_Bootloader.zip”  .
  • Install Mi Flash Tool Run “MiPhone20151028.exe“.

Step 3:-

  • Connect Your Phone To Pc.

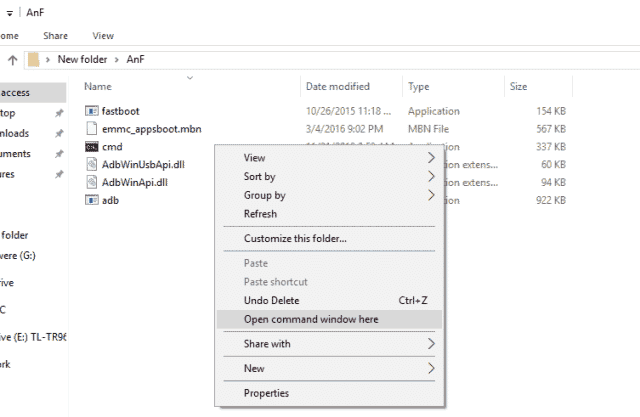

  • Go To “AnF” Folder. And Open Cmd There By

Hold Shift + Mouse Right On AnF Folder then click open command windows here

anf-cmd

  • Now type or paste this commands then hit Enter.

adb devices

then

adb reboot edl

redmi-note-3-bootloader

  • Phone Will Turn Into Download Mode Don’t Disconnect The Phone.

Step 4 :-

  • Run “MiFlash.exe” From “C:\Program Files (x86)\Xiaomi\MiPhone” .
  • Click Browse Then click Advanced.
  • Browse all files from “Global Stable V 7.2.3” Fastboot Unzipped Folder.

xiaomi-note-3-mi-flash-tool

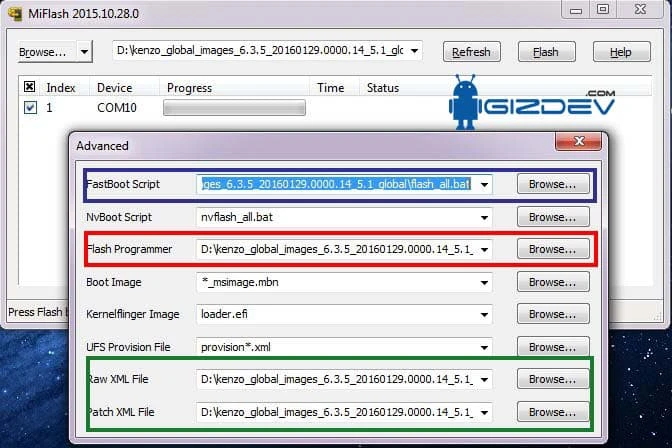

  • Browse “flashall.bat” in fastboot Script at first option, third option to “prog_emmc_firehose_8976_ddr.mbn” , then last two options browse to “rawprogram0.xml” and “patch0.xml

mi-flash-tool-unlock-bootloader

  • Now Copy “emmc_appsboot.mbn” file from “7.2.3_unlocked_emmc_appsboot Unziped Folder To Global Stable V 7.2.3 Fastboot Unziped in “Images” folder and Replace It .
  • Press “Refresh” On Mi Flash It Would Show You Phone Connected Via Some Com Port # No
  • Press “Flash“.

(if Mi flash shows an error on clicking Flash , please restart Miflash and try again)

  • It Would Take Some Time
  • After The Flash Is Completed Successfully, Phone Will Auto Reboot Or Direct Turn In Into Fastboot Mode By.

By Pressing Volume Down + Power for about 30 + seconds

Step 5:-

Go To “AnF” Folder and Open Command There.

Turn On Your Phone Fastboot Mode By

By Pressing Volume Down + Power

Now Type Or Paste This Commands Then Hit Enter.

fastboot oem device-info

It will show you the current Bootloader Status.

Now again Type

fastboot oem unlock-go

This Code will Unlock your Phone bootloader.

fastboot reboot

This Code Will Reboot Your Phone.

143236q2vniokttvvq3tkq.jpg.thumb



Your Redmi Note 3 Bootloader is  Successfully Unlocked Now, You Can Root Flash Twrp, Custom Roms

To Restore The Default Bootloader Copy “Emmc_appsboot.Mbn” From Fastboot Rom To The Anf Folder.
And Type Or Paste This Command On Cmd.



Fastboot Flash About Emmc_appsboot.Mbn



Fastboot Flash Abootbak Emmc_appsboot.Mbn

  • Reboot The Device

Fastboot Reboot



Reboot Your Phone.

Install Twrp 3.0 Recovery And Root Redmi Note 3 Guide Here.

Like Xiaomi Dev And Gizdev Like Share Comments Here If Any Problem, You Face During Unlock 🙂

Also Read  Guide To Root Xiaomi Mi 5 Without Pc Using Kingroot
Source Xda Forum
